How To Configure an Ankle Tracker

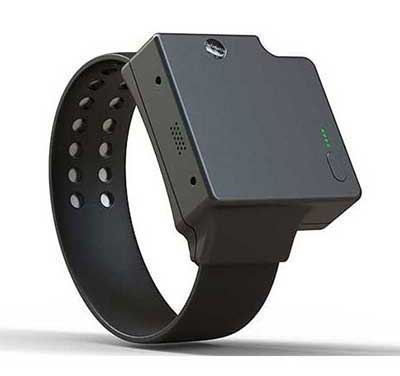

Ankle Tracker

Ankle tracker beacon is an excellent product we can enable the indoor tracking in the law enforcement solutions. To get more information please click the link Contact Us

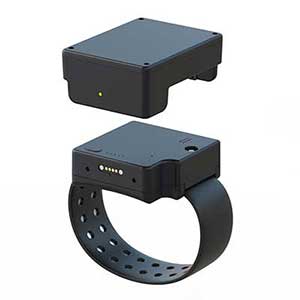

Charger for Ankle Tracker

We design a portable charger for the ankle tracker to allow the user can charge it anywhere anytime.

Social Media

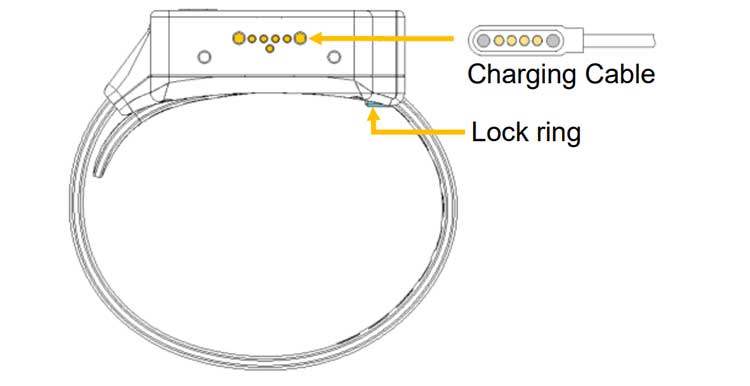

Charge the ankle tracker

The tracker will be charged by connecting the cable to the magnetic port. It could take 5 to 6 hours to fully charge the tracker.

Button and parts

Short press the button for 1 second to power ON the tracker.

While the tracker is powered ON ,the user could short press the button for 1 second to check the LED and device status.

While the tracker is powered ON without SIM card installed, the user could short press the button for 7 times to power off the tracker. The tracker vibrates 3 times to tell it will be powered OFF.

The tracker can’t be powered OFF by pressing button when there is SIM card installed with the tracker.

With SOS enabled, the wearer could long press the button for 3 seconds to trigger SOS alert.

Long press the button for 15 seconds to restart the tracker. The tracker vibrates 1 time to tell it will be restarted.

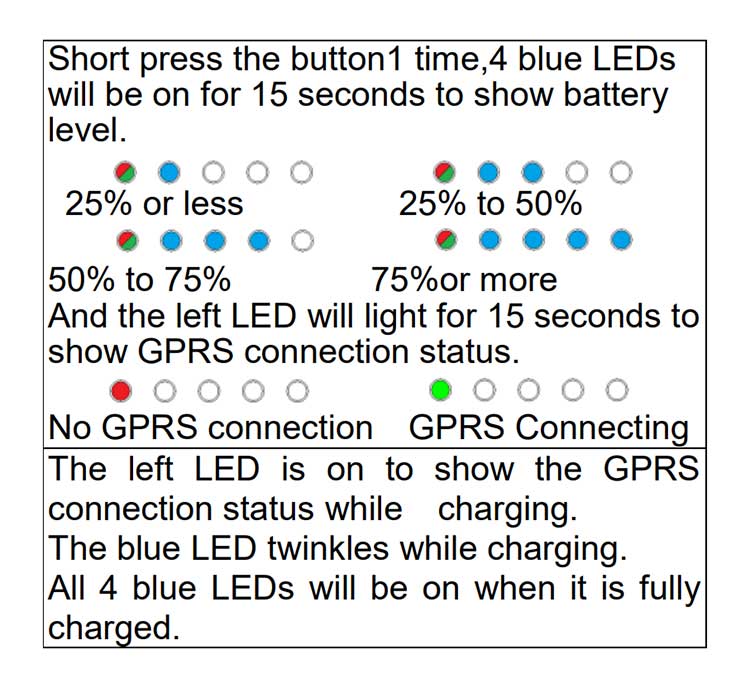

LED light display

Wearing and Key Function

Open the back cover with cross screwdriver. Install a NANO SIM and fasten the back cover with screws. The SIM card should support 4G,and enabled with GPRS plan and balance.

Wear the tracker on the ankle. Make the strap go around the ankle, and make the strap end go through the metal strap lock ring. Fasten the strap and the ring with special screw.

Long press the button to power ON the tracker.

Do not try to open the strap or damage the tracker without permission. The tracker will send tamperproof alert to the tracking platform.

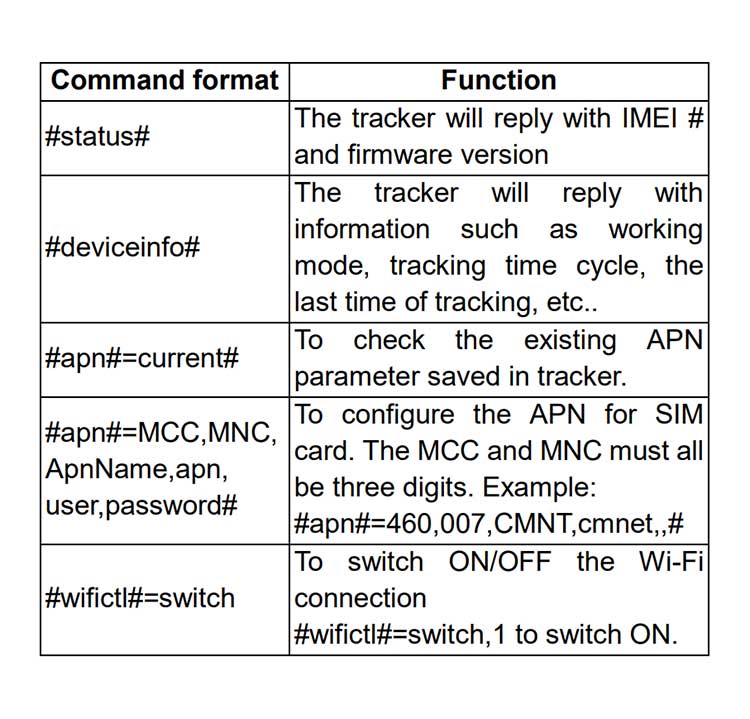

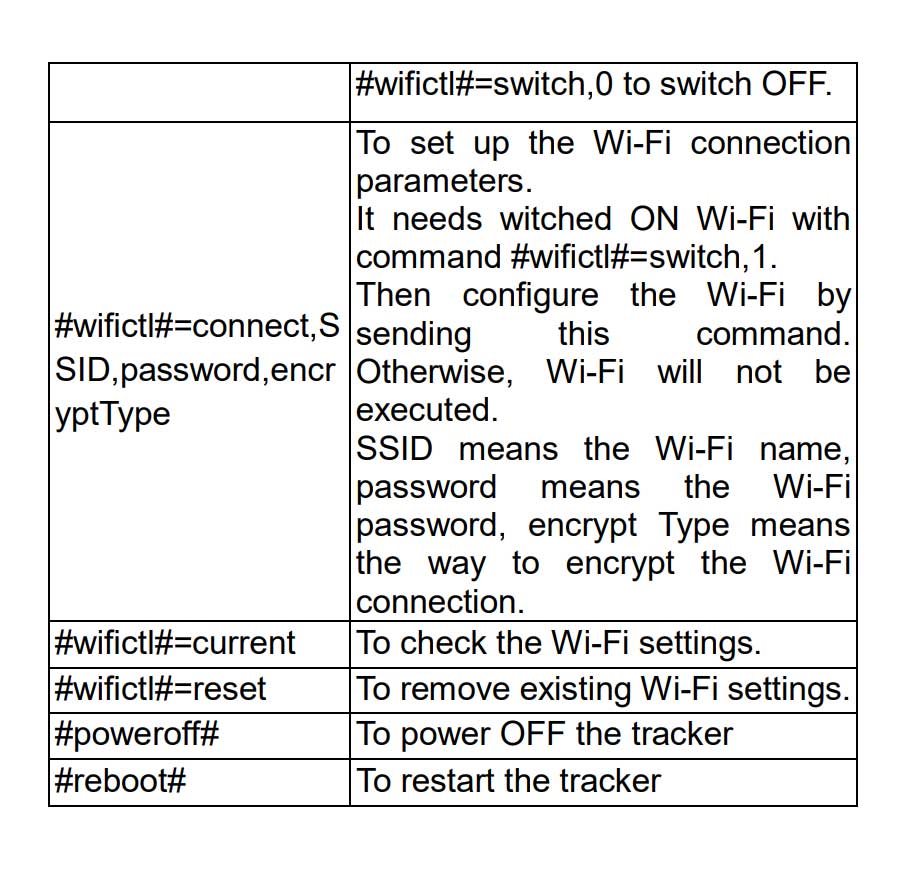

Command List
